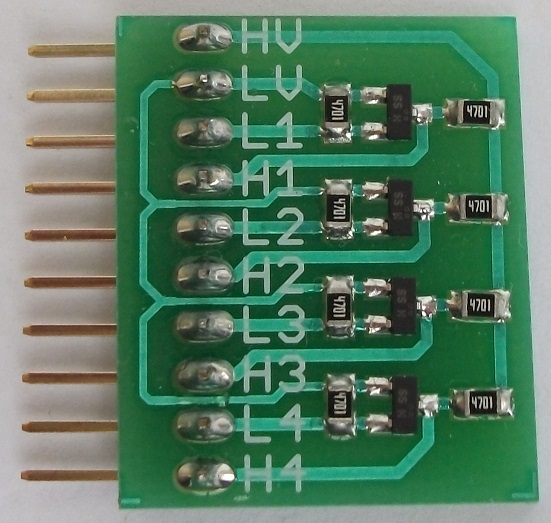

4 channel bidirectional level shifter module
×
Click on the image to enlarge it.
Item characteristics
- 4 bidirectional channels
- works with any voltage level from 1.5V to 30V
- dimensions: 27x22mm (PCB)
- connector spacing = 2.54mm (0.1 inch)
- needs very small space in standing position
- breadboard compatible for hobbyists
Pinout
| HV | High(er) Voltage supply pin (5V) |
| LV | Low(er) Voltage supply pin (3.3V) |
| L1-L4 | Low level I/O lines (3.3V) |
| H1-H4 | High level I/O lines (5V) |
Voltage on Hx pins must be higher then on Lx pins!
How level shifter works?
This level shifter is based on BSS138 MOSFETs. There is a great article on this type of level shifters here.
If you don't need bidirectional level shifter I have unidirectional level shifter also. Unidirectional level shifter will generate nicer signal shape at high frequency.
