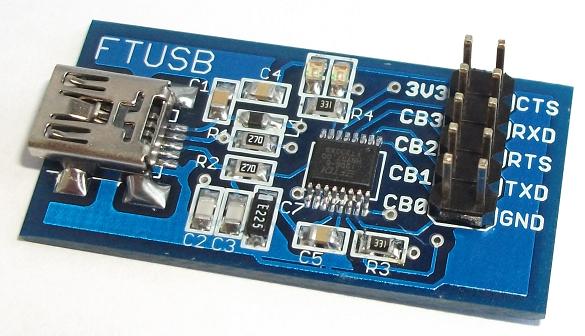

FTUSB USB-UART module

Item Description

FTUSB is a USB-UART converter module. The module will output 3.3V level signals but inputs are 5V tolerant. FT230X chip consists of a 3.3V regulator. The module can source 3.3V external circuit up to 50mA current. Do NOT exceed the 50mA maximum current limit!

Product characteristics

• dimension: 40x20mm (PCB only)
• USB powered
• 5V tolerant inputs
• 3.3V outputs
• LED indicator for RX and TX
• Baud rates: from 300 baud up to 3Mbaud
