ATX adapter

---

×

Click on the image to enlarge it.

---

×

Click on the image to enlarge it.

Product info

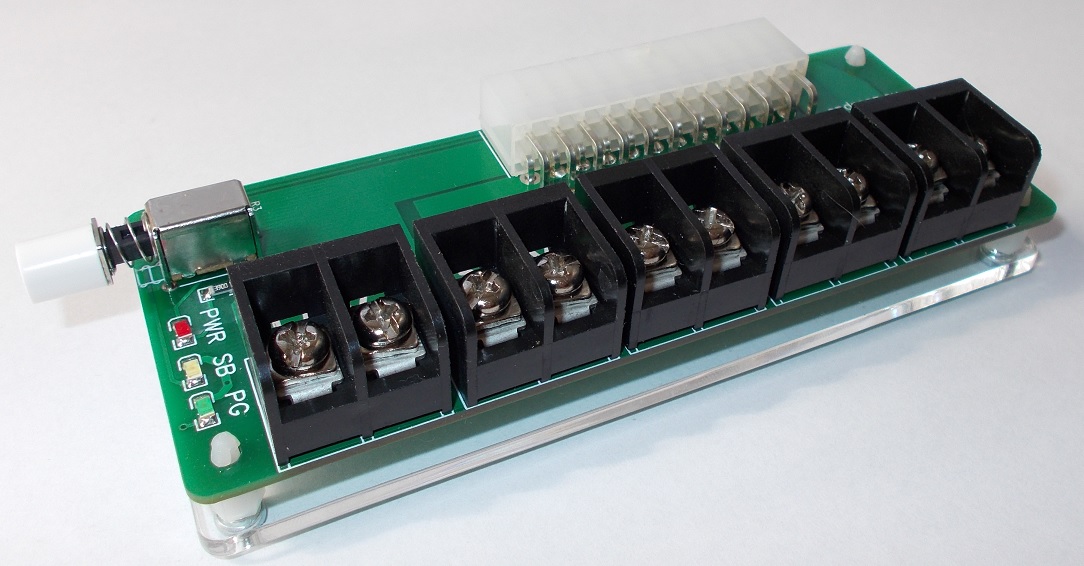

Computer ATX power supply can be used to power electronic devices. It is very beneficial if large current needed. There are 2 screw terminals for +5V, +3.3V, +12V and 3 screw terminals for GND.

---

×

Click on the image to enlarge it.

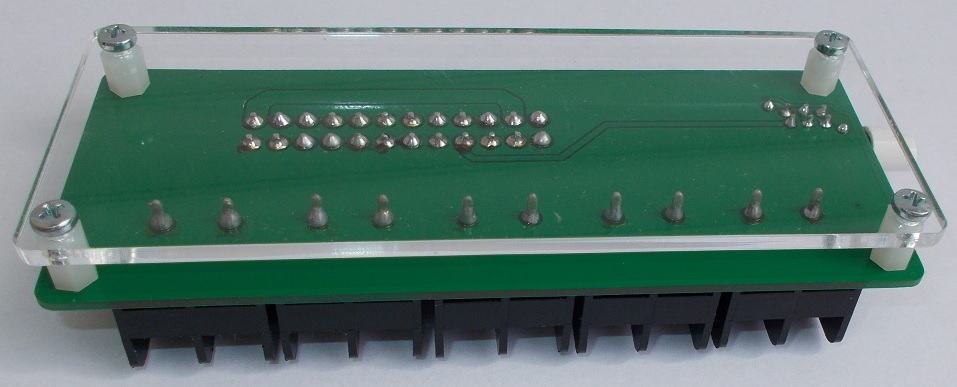

The ATX adapter comes in acrylic box (top and bottom plate). ATX power supply and cables are NOT included!

---

×

Click on the image to enlarge it.

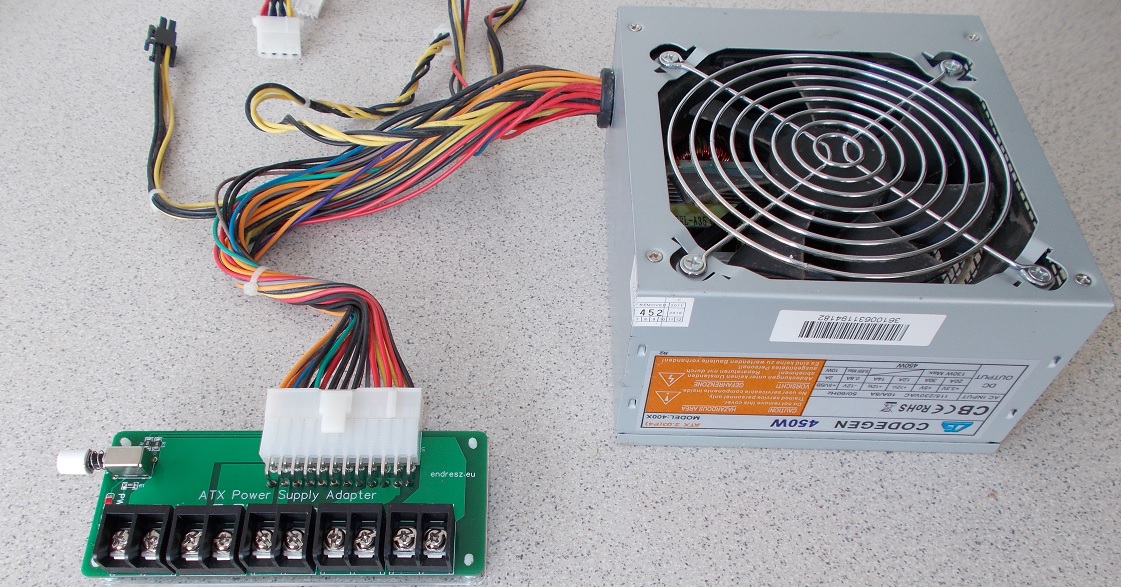

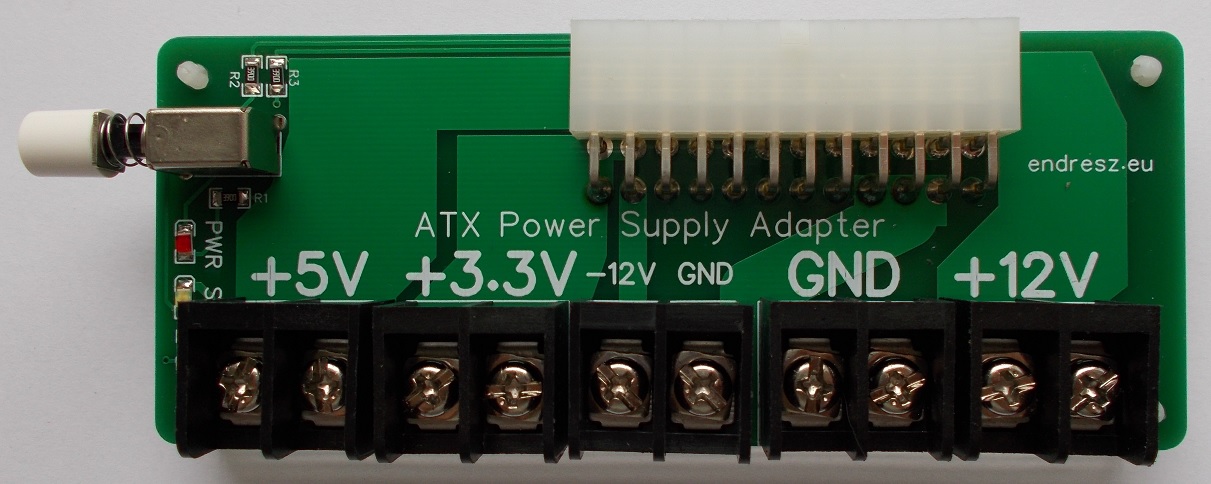

ATX adapter has a 24 pin connector to connect with ATX power supply. LED indicators:
PWR = Power
SB = Stand-by
PG = Power Good

---

×

Click on the image to enlarge it.

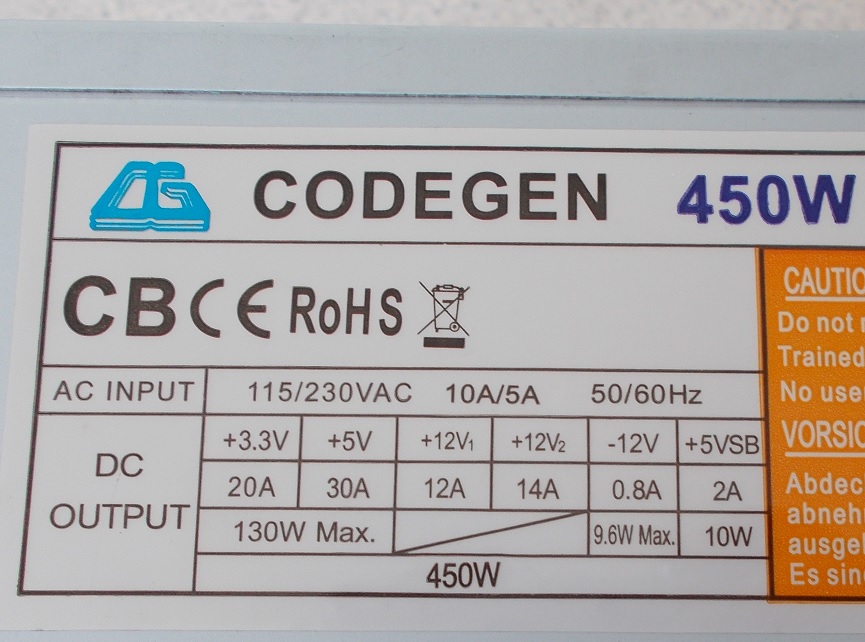

Before use check power supply data table on its side. Do not exeed the currents provided on that table! If more than 10A current needed use more than one screw terminal.

Circuit protection, fuses

ATX power supplies are usually fused. ATX adapter is NOT fused. If additional protection needed use fused cables or install circuit protection on target device.

If the target circuit needs a lot of power regularly check the power supply, cables and ATX adapter temperature to avoid fire or damage!
