Atmel ICE case assembly instructions

Follow these steps to put the enclosure together:

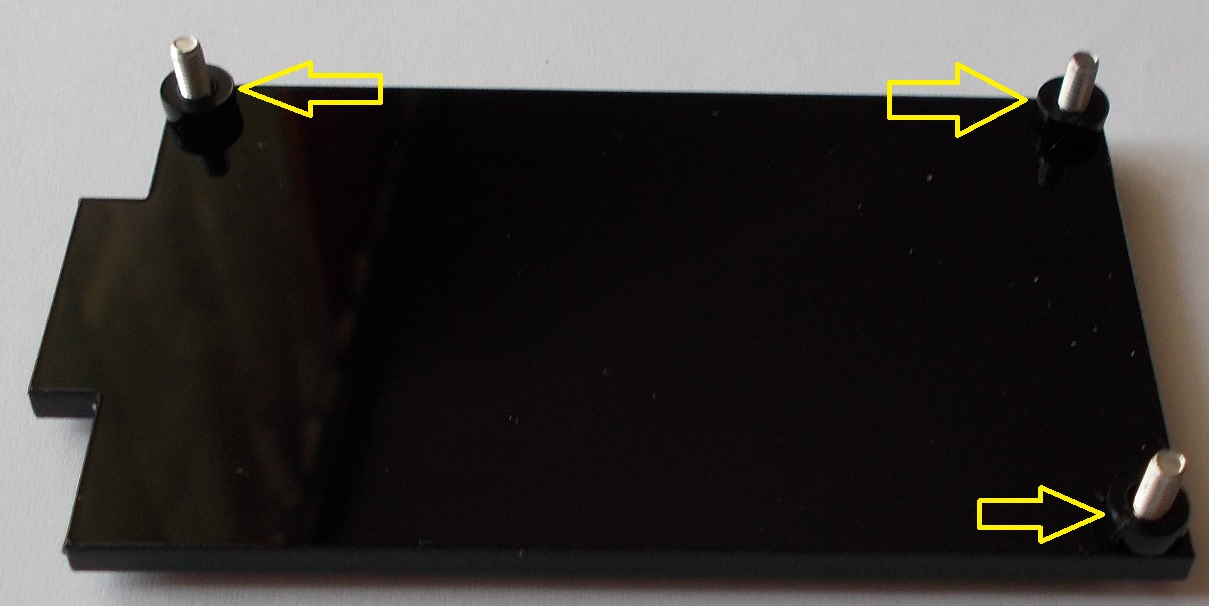

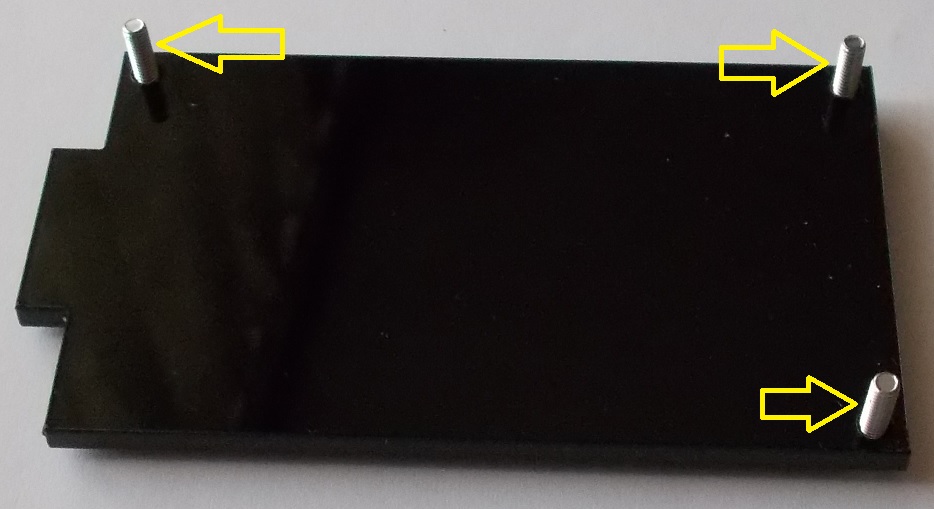

  1. Take the black acryl sheet for bottam and put the 3 long screws in the holes


  2. Put the plastic spacer on that (like you see on the picture)

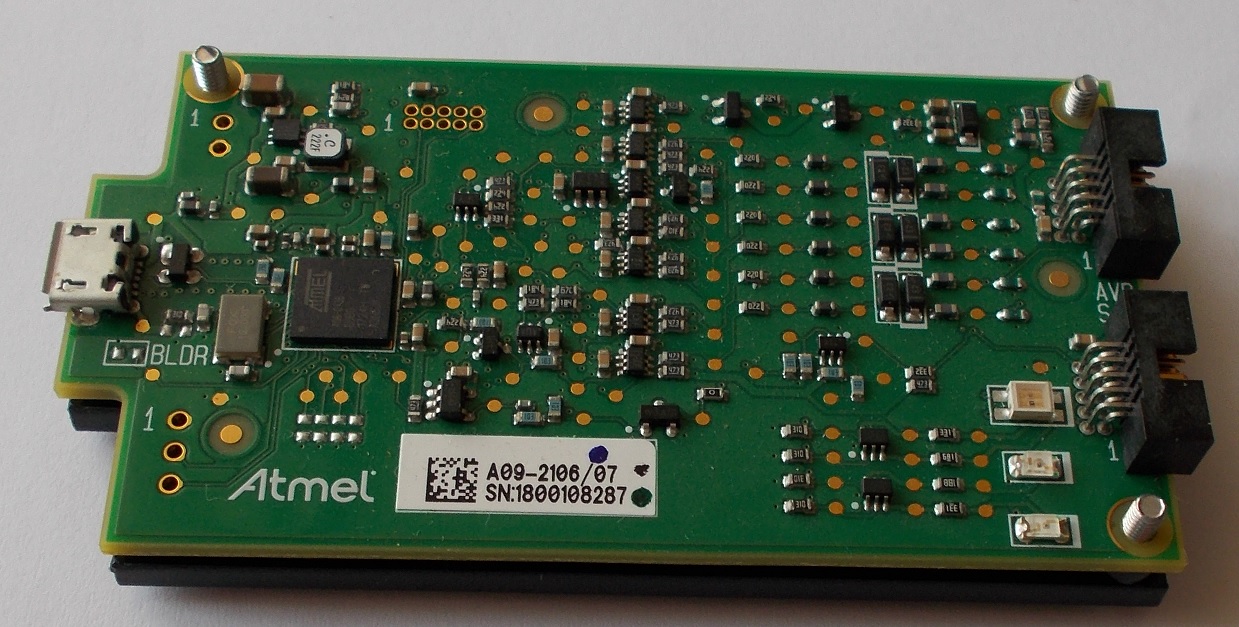

  3. Put the Atmel ICE PCBA on the top of that

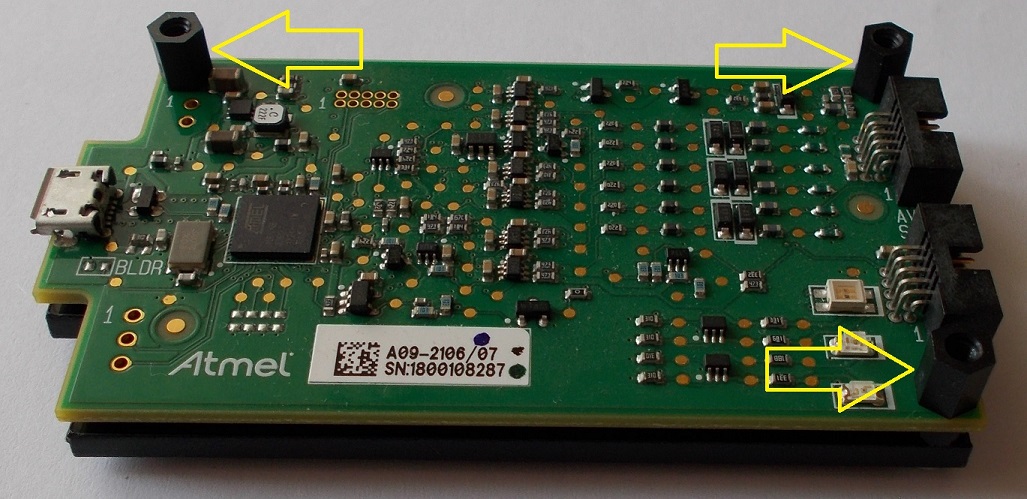

  4. Then comes the 3 hex spacers

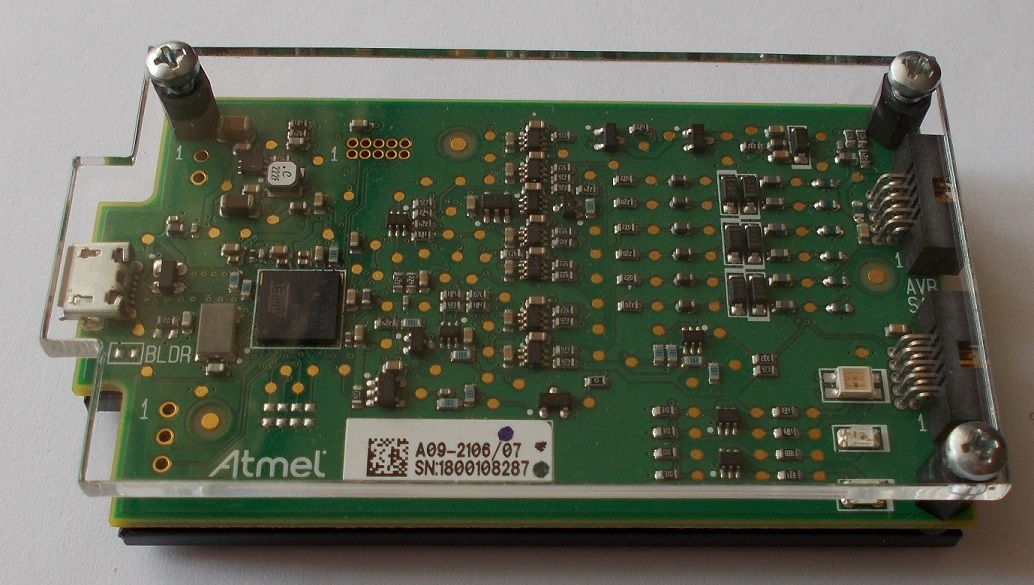

  5. Put the clear acryl top part on top of that and the 3 shorter screws

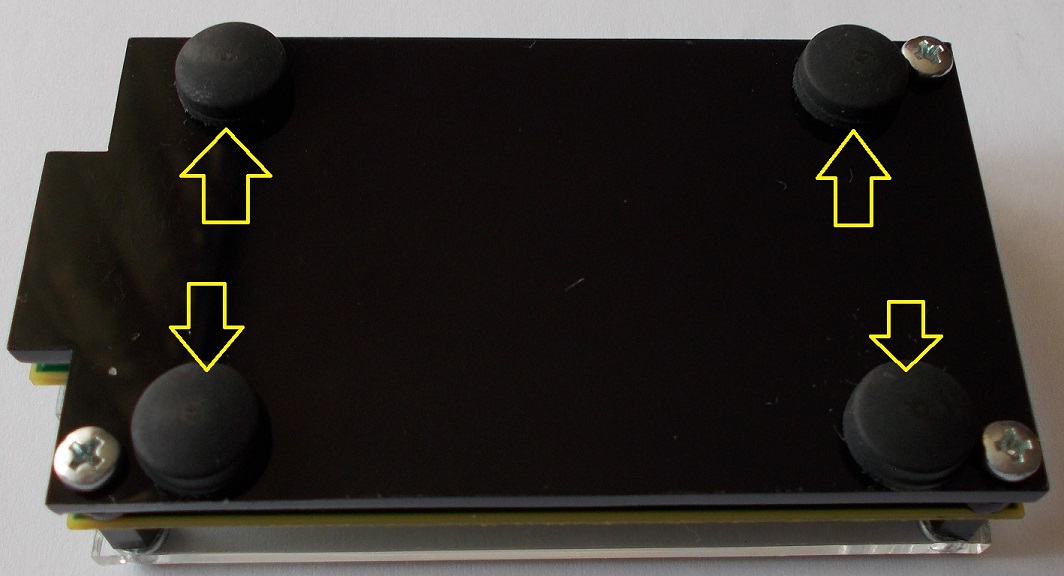

  6. Stick the 4 self adhesive rubber foot as you can see on picture

There are more photos on fully assembled programmer on the product page.
